SK12 Shaft Support base is a precision machined aluminum movable unit for the fixation of linear shafts. There is a gap in the shaft mounting part, which is convenient to fasten the shaft with bolts.
Product Description
SK12 Shaft Support: The vertical shaft supports precision-machined aluminum movable units, have the advantages of interchangeability, low cost, and efficient design. Structure and characteristics The linear bearing is composed of a shell, a special steel ball, a retainer, and a snap ring or sealing ring at both ends. The retainer is installed in the shell and is fixed by snap rings or sealing rings at both ends, so that the steel ball repeats circular motion in the track surface of the retainer.
|
Product Information |
|
|
Product Name |
SK shaft support |
|
Material |
Aluminum alloy |
|
SIZE |

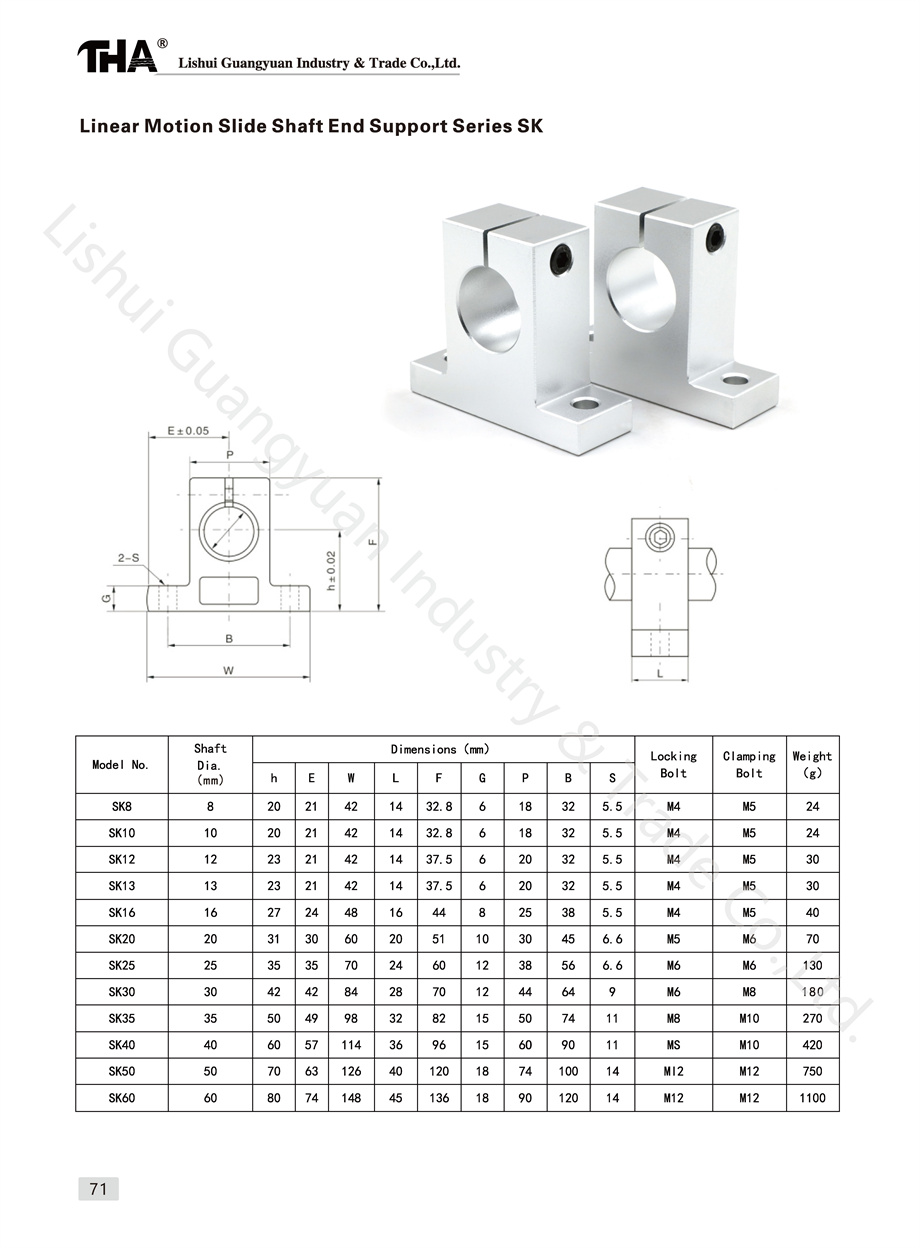

Standard dimension as the following product data show |
|
Application |
Linear shaft |
|
Model No. |

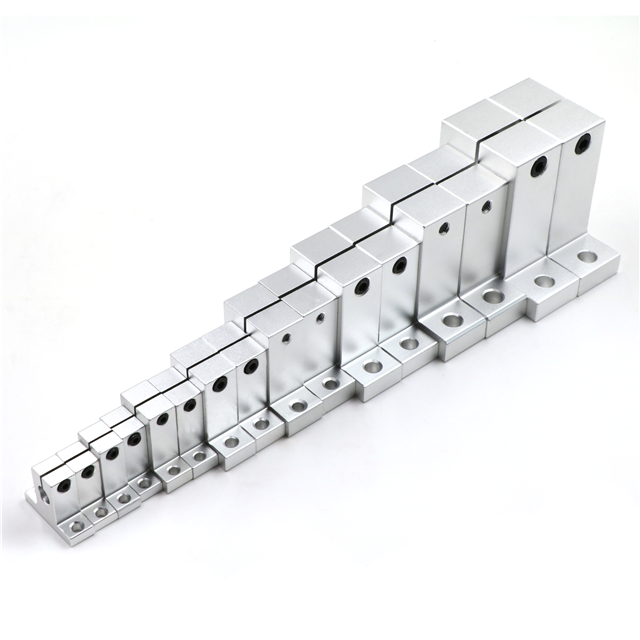

SK 8A, SK 10A, SK 12A, SK 13A, SK 16A, SK 20A, SK 25A, SK 30A, SK 35A, SK 40A, SK 50A, SK 60A |
|
Our services |
According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services. |
|
Product Package |
a. Plastic bag with box case or wooden case. |
|
Delivery Time |
3~7 days for sample order, 15~20 days for bulk order. |
