Under liquid lubrication conditions, the sliding surface of Rod End Ball Bearing is separated by the lubricating oil without direct contact, which can also greatly reduce friction loss and surface wear. The oil film also has a certain vibration absorption capacity.
Product Details

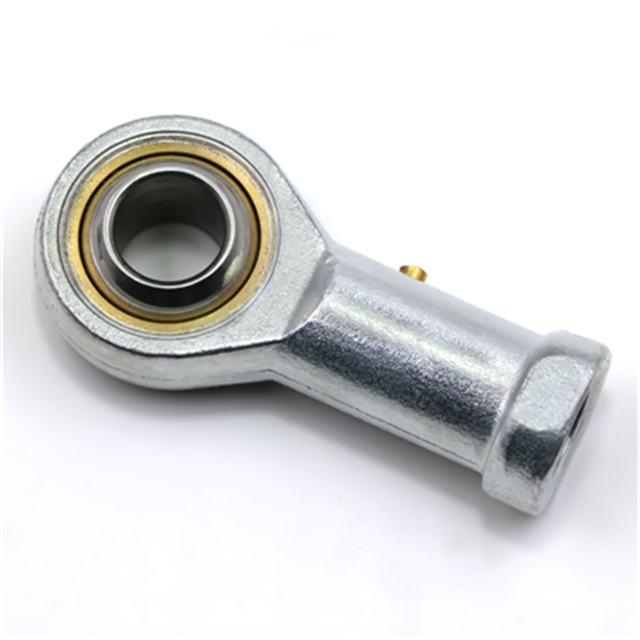

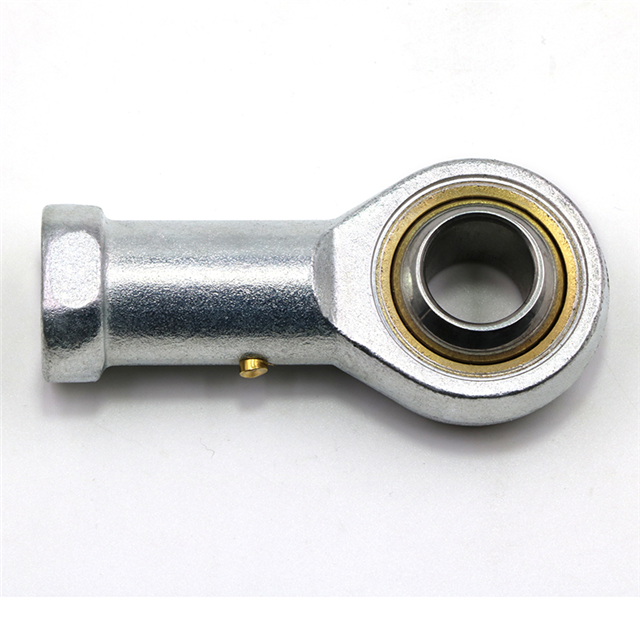

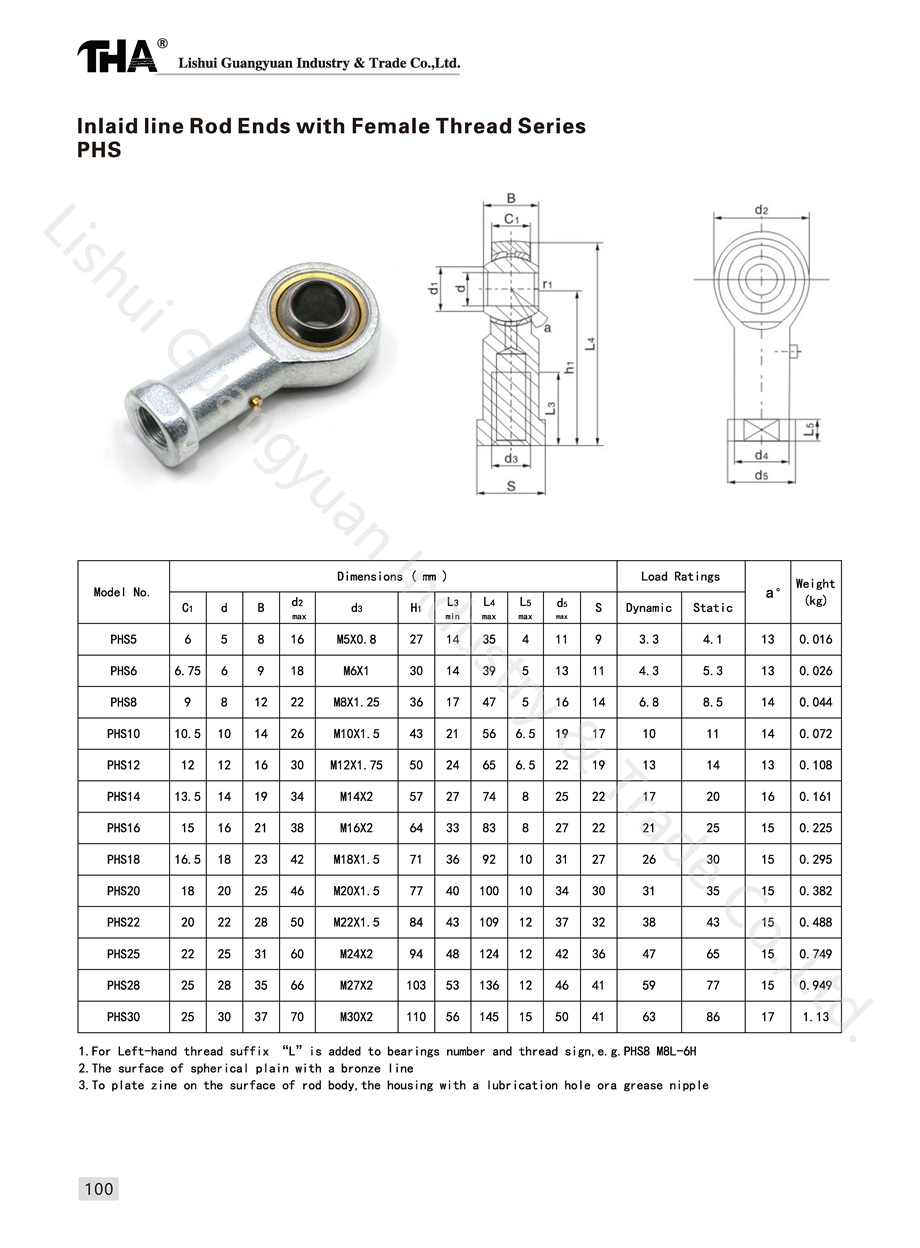

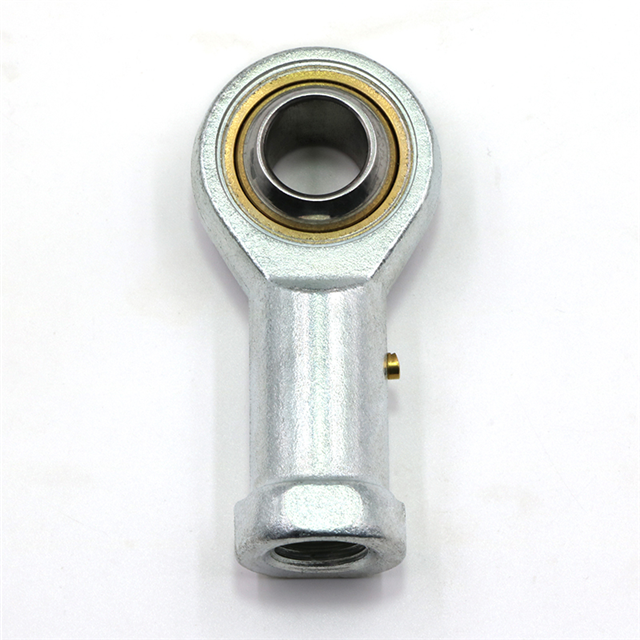

The rod end of the PHS model has internal threads, made of carbon structural steel, and has a lubricating oil groove.It can bear radial load and axial load less than or equal to 0.2 times of radial load in any direction.
Product Description
The rod end body is plated with environmentally friendly white zinc, the sliding surface is inlaid with a bronze liner, the inner ring material is bearing steel, the spherical surface is plated with hard chrome, and it can be lubricated by Tongzhi oil or the rod end eye.
|
Product Information |
|
|
Product Name |
Ball Joint Rod End Bearing |
|
Material |
Carbon steel, white zinc, bearing steel, hard chrome |
|
Length |
Can be customized according to customers requirement |
|
Application |
General industrial machinery, Automated machinery, Electronic machinery, Transportation machinery, Food Machinery, industrial gearboxes, pumps, agricultural machinery, etc |
|
Model No. |
PHS5, PHS6, PHS8，PHS10, PHS10-1, PHS12, PHS12-1, PHS14, PHS14-1, PHS16, PHS16-1, PHS18, PHS20, PHS22, PHS25, PHS28, PHS30, PHS30-1 |
|
Our services |
According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services. |
|
Product Package |
a. Plastic bag with box case or wooden case. |
|
Delivery Time |
3~7 days for sample order, 15~20 days for bulk order. |
