Rod End Joint Bearing Adopted a special process method, Such as surface phosphating, galvanizing, chrome plating or outer sliding surface lining, inlay, spraying, etc.
Product Details

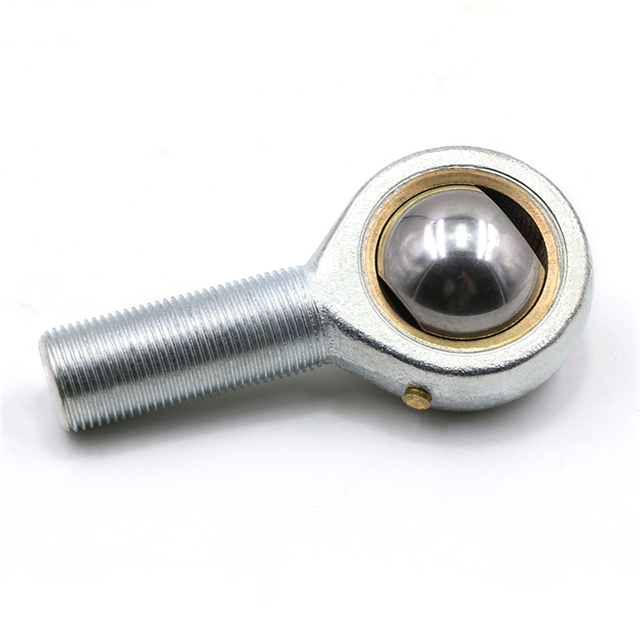

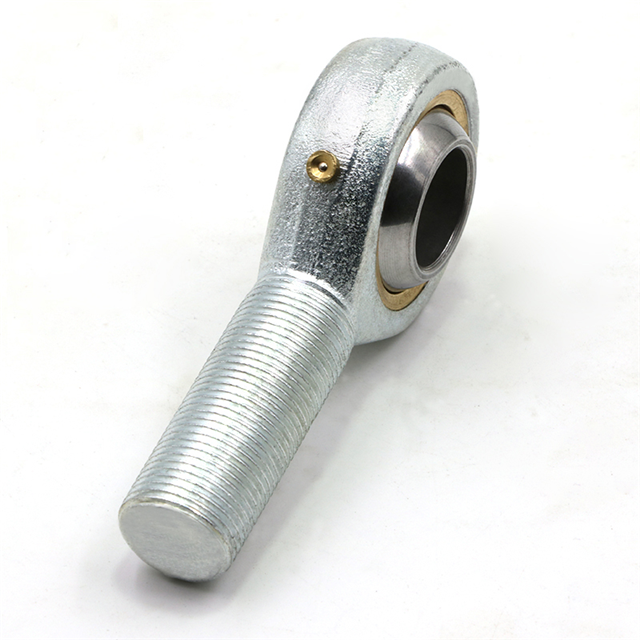

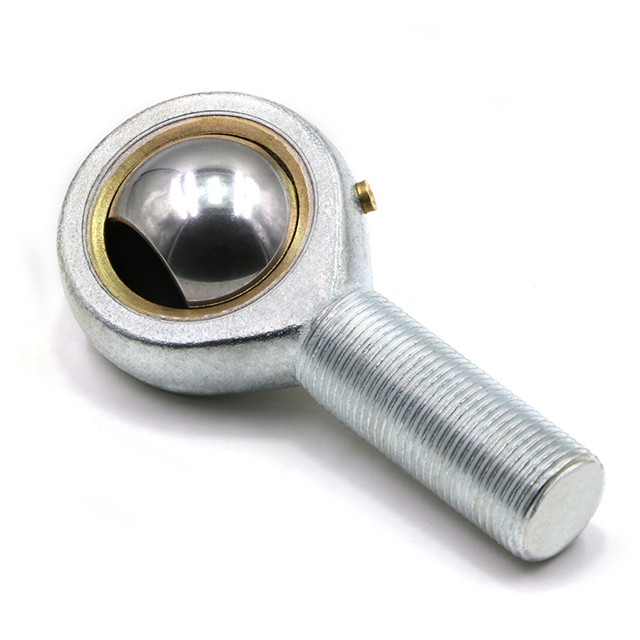

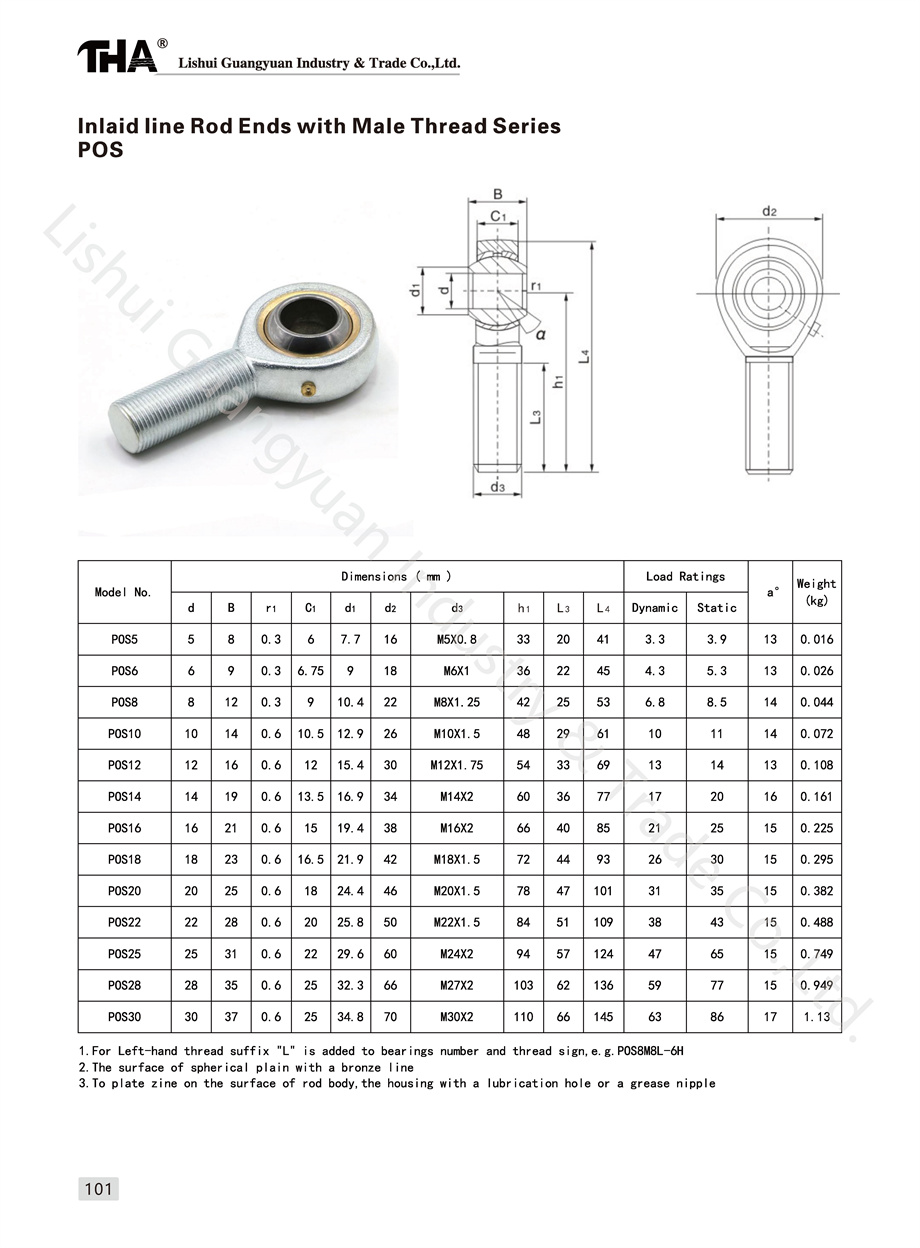

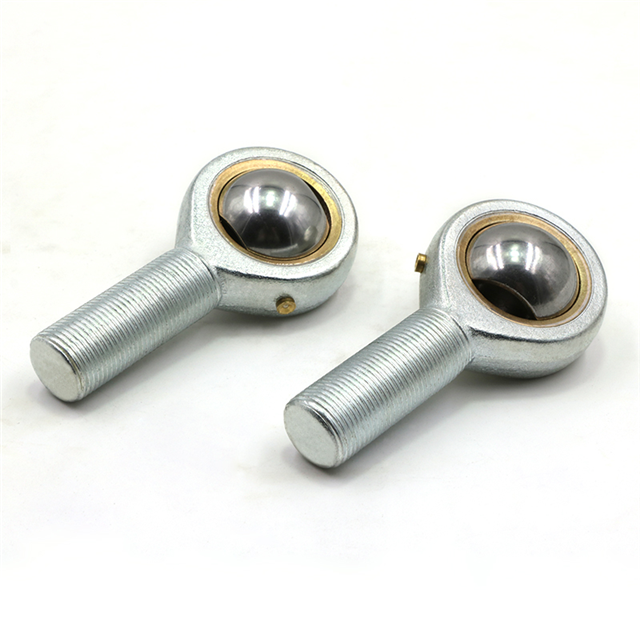

The rod end of the POS model has an external thread, made of carbon structural steel, and has a lubricating oil groove.It can bear radial load and light rain in any direction or an axial load equal to 0.2 times the radial load.
Product Description
The rod end body is plated with environmentally friendly white zinc, the sliding surface is inlaid with a bronze gasket, and the inner ring material is hard chrome plated on the surface of the bearing pot, which can be lubricated by a grease nipple or a rod end eye.
|
Product Information |
|
|
Product Name |
Thread Rod End Joint Bearing |
|
Material |
Carbon steel, white zinc, |
|
Length |
Can be customized according to customers requirement |
|
Feature |
Low noise, less vibration, high precision and long life |
|
Model No. |
POS5, POS6, POS8, POS10, POS12, POS14, POS16, POS18，POS20, POS22, POS25, POS28, POS30 |
|
Our services |
According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services. |
|
Product Package |
a. Plastic bag with box case or wooden case. |
|
Delivery Time |
3~7 days for sample order, 15~20 days for bulk order. |
