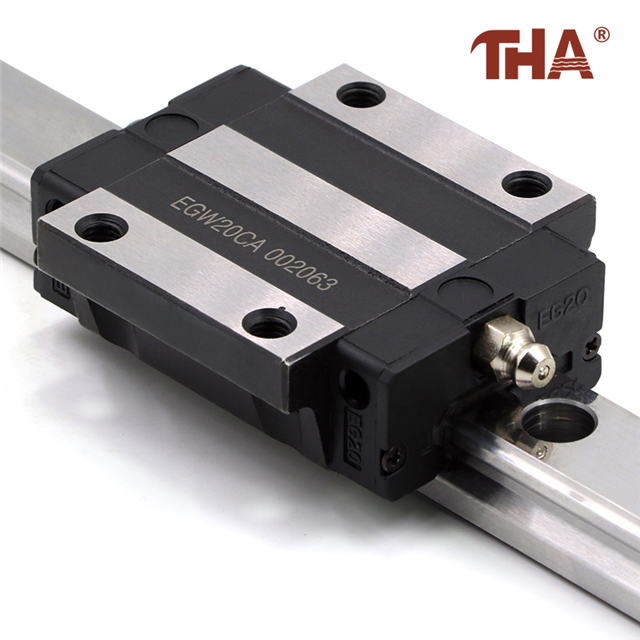

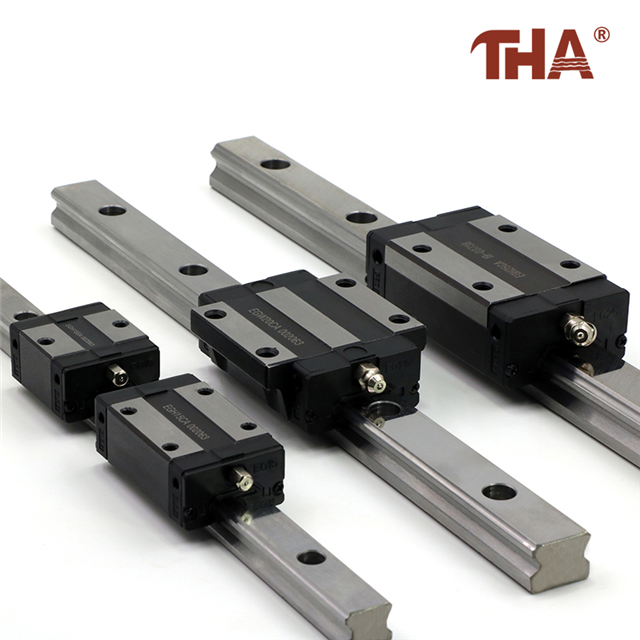

Linear Rail EGW with Block systems comprise components such as rails, sliders/blocks, rolling elements (balls or rollers), retainers/end caps, and sealing devices. The rail serves as the fixed reference component, while the slider performs linear motion along it via internally circulating rolling elements, thereby achieving high-precision, low-friction guidance functionality.
Linear Rail EGW with Block Core Components:

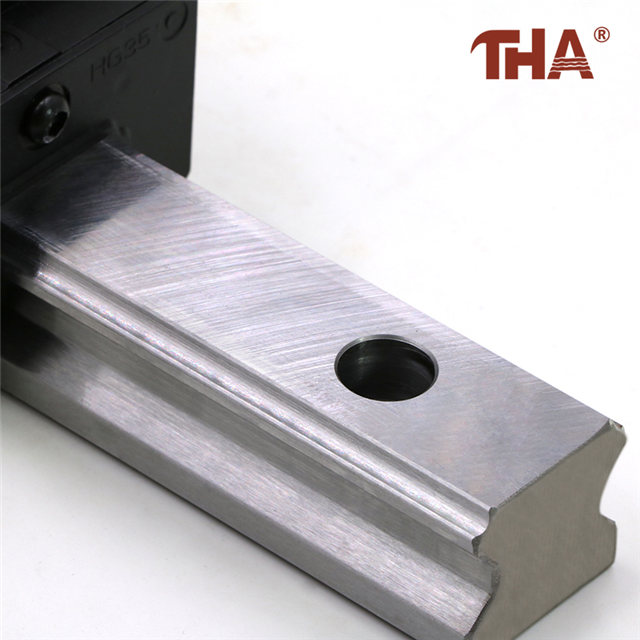

Guide Rail: Fixed component, typically a long, flat steel rail with a precision-ground surface
Slider/Block: Moving component, internally fitted with a recirculating ball or roller system
Balls/Rollers: Rolling elements that traverse between the guide rail and slider to achieve low-friction motion
End Caps/Seals: Prevent ingress of dust and contaminants while retaining lubrication
Guide rails require regular maintenance to prevent compromising product precision and operational smoothness.
Regular lubrication: Select grease or oil based on usage frequency
Cleaning and protection: Periodically clean rail surfaces and maintain seal integrity
Wear inspection: Routinely examine ball bearings and rail surface wear
Preload adjustment: Verify appropriate preload after prolonged use

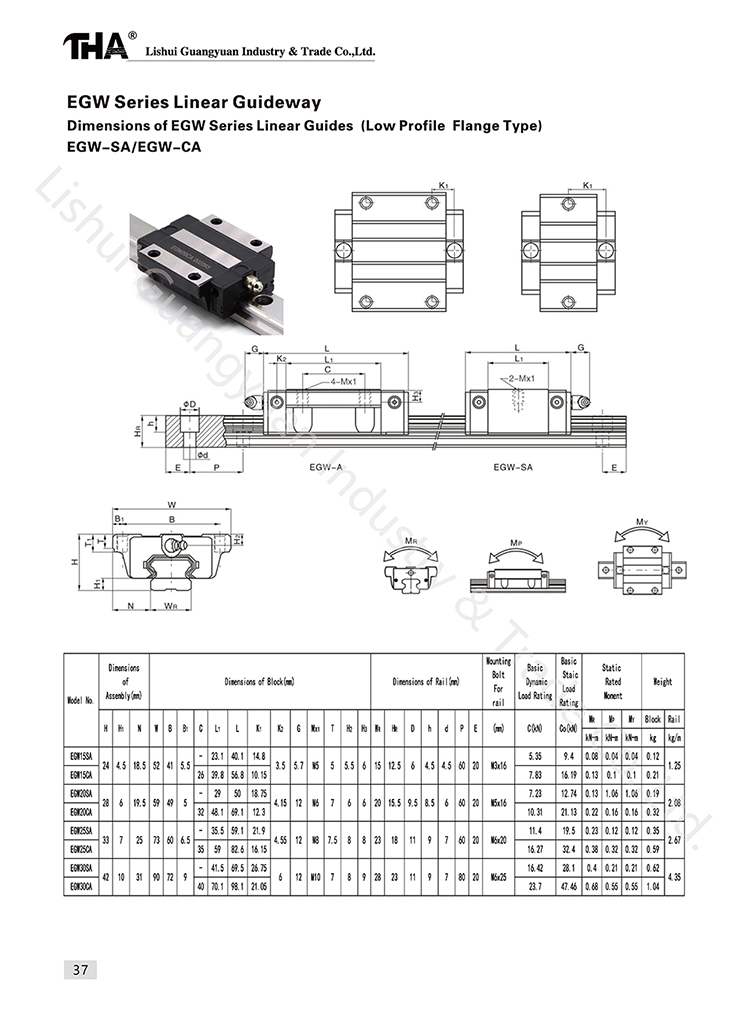

The following is a detailed specification table for the product, which may be consulted for reference.

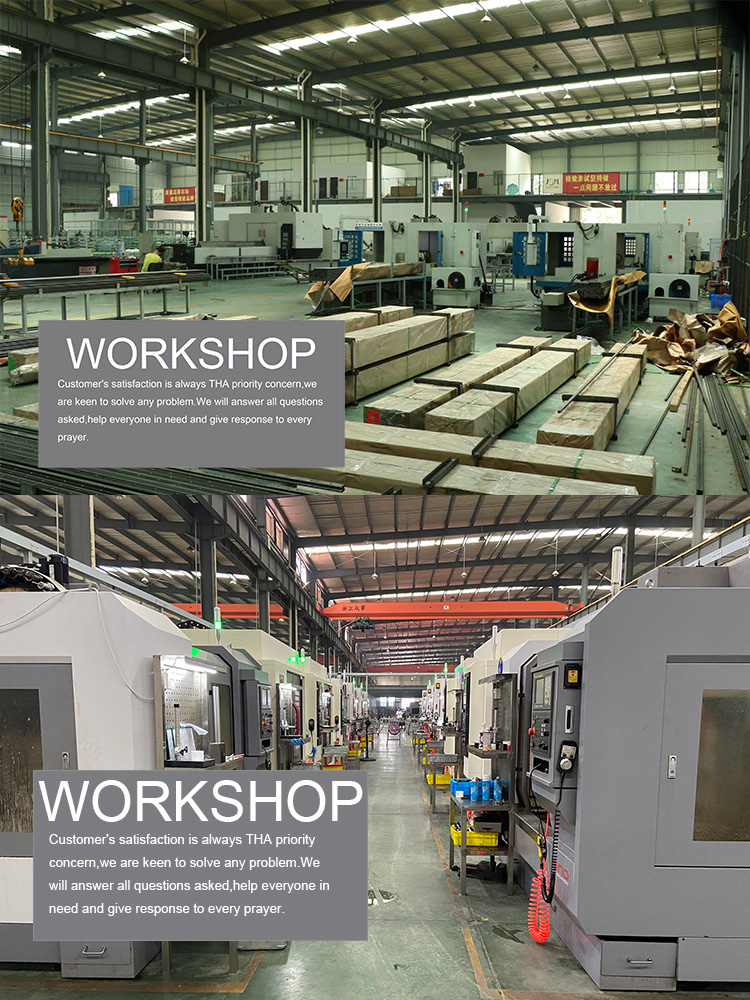

Company Profile
Why Choose Us
Shipment
FAQ
1.Q: Could you send me your catalogue and price list?
A:As we have more than hundreds of products,it is really too hard to send all of catalogue and price list for you. Please inform us the style you interested, we can offer the pricelist for your reference.
2.Q: Can you provide custom sizes or OEM service?
A: Yes. We offer OEM and ODM services. Custom dimensions, hole spacing, shaft lengths, materials, and branded packaging are all available. Just send us your drawing or requirements.
3.Q: Can you supply complete linear motion kits?
A：Yes. We provide full sets including:
A.Guide rails + blocks
B.Linear shafts + shaft supports
C.Ball screws + nuts + end supports
Everything is matched for smooth and easy installation.
4. Q:What is MOQ?
A:For inventory items, no minimum order quantity .
For other items, would you please check our specific details for each item to get the MOQ. Any special requirement, please tell us.
5.Q:How to contact us?
A:You can chat with us online, call us, send us email, send messages via trade manager, wechat, whatsapp, etc.
