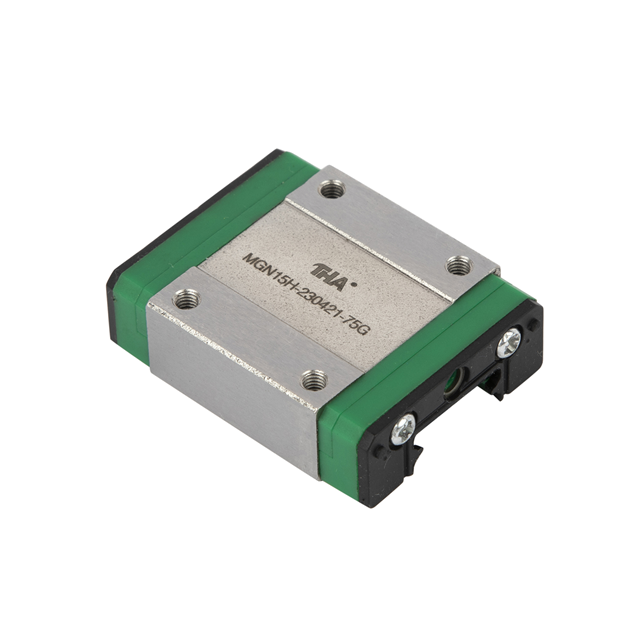

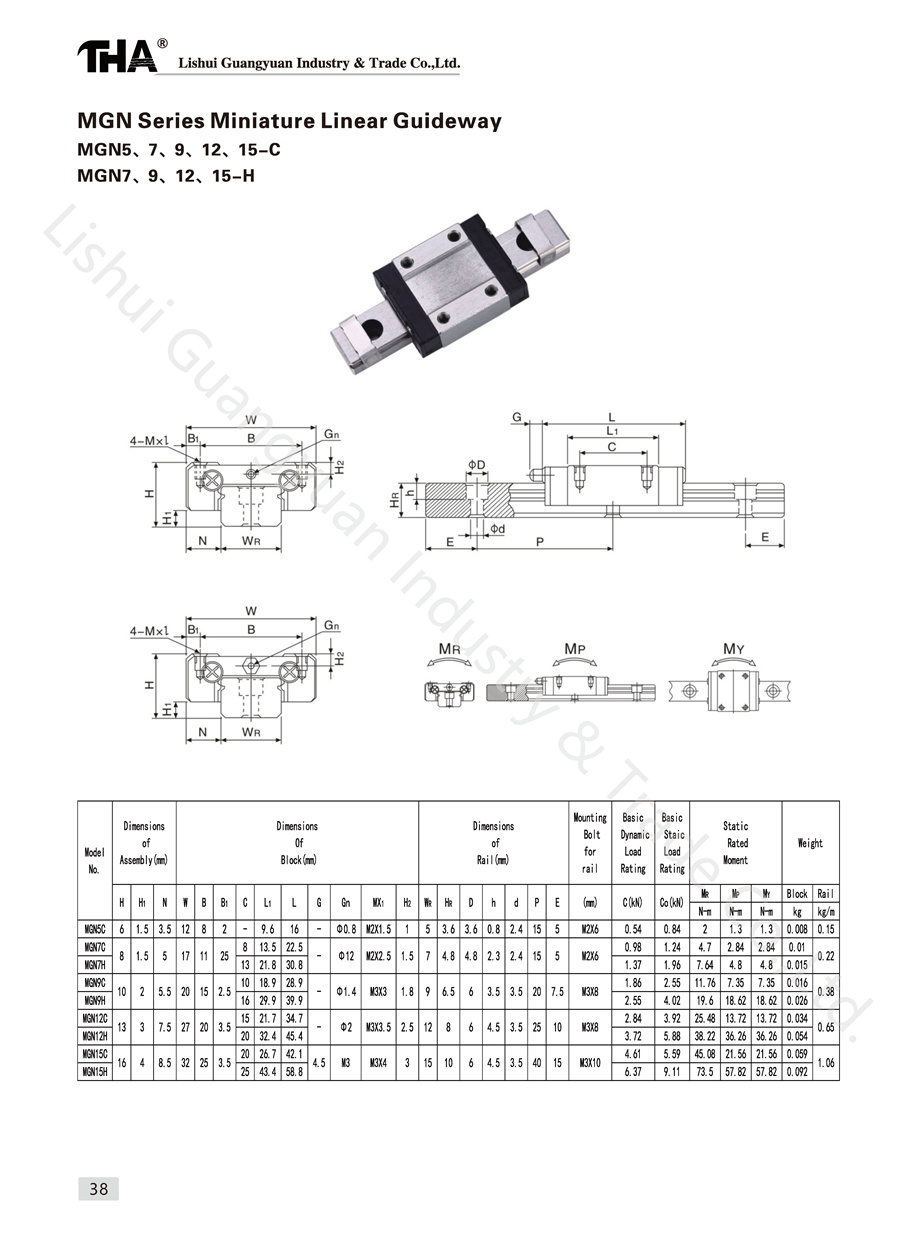

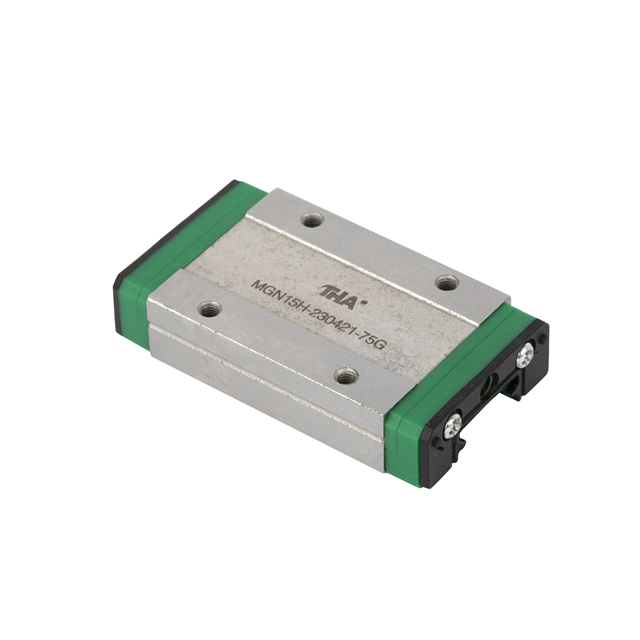

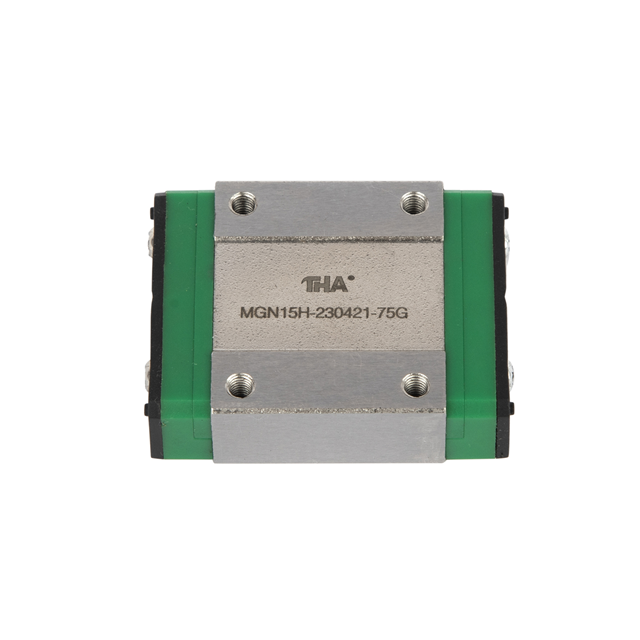

The MG Series with tiny and light weight design is suitable for miniature equipment. All materials are special grade of stainless steel and alloy steel for anti-corrosion ability. Gothic arch contact design has high rigidity and accuracy characteristic in all directions. Steel balls are constrained by miniature retainer so without loosing balls when remove the block MG Series. The design of enlarged width, MGW Series, has increased capacity of moment load. Gothic arch contact design has high rigidity characteristic in all directions. Steel balls are constrained by miniature retainer so without loosing balls when removing the block away from the rail. All metal components are made of stainless steel for anti-corrosion ability.
MGN/MGW series: printer, robot arm, electronic instrument equipment, semiconductor equipment.
|
Product Information |
|
|
Product Name |

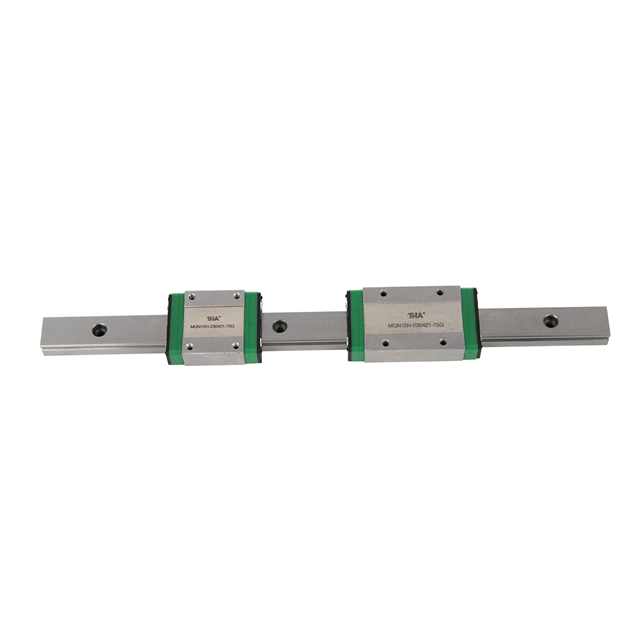

THA MGN Linear Rail |
|
Material |
Bearing steel, Gcr15, stainless steel, chrome steel |
|
Length |
Can be customized according to customers requirement |
|
Precision |
C,H,P |
|

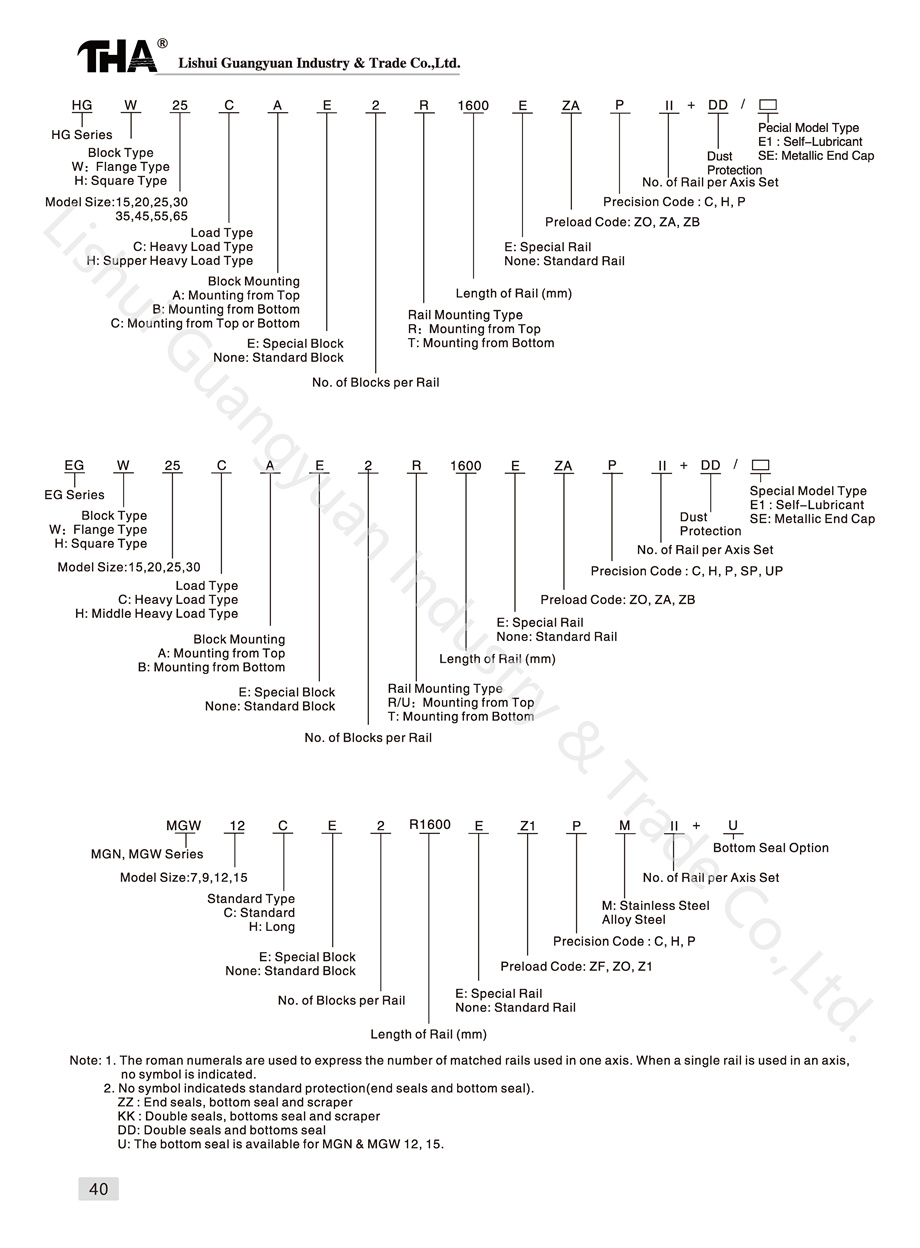

Model No. |
MGN5C, MGN7C, MGN9C, MGN12C, MGN15C |
|
Our services |
According to drawings or samples for our customers to manufacture products. |
|
Product Package |
a. Plastic bag with box case or wooden case. We can provide shipping information to our customer at any time. |
|
Delivery time |
3~7 days for sample order, 15~20 days for bulk order. Depends on the actual shipping situation. |
