Most of the commonly used couplings have been standardized or standardized. Under normal circumstances, it is only necessary to correctly select the type of coupling and determine the type and size of the coupling.
Product Description
The coupling must have the following performance:
Mobility. The mobility of the coupling refers to the ability to compensate for the relative displacement of the two rotating components. Factors such as manufacturing and installation errors between the connected components, temperature changes during operation and load deformation, etc., all put forward requirements for portability. The movable performance compensates or relieves the additional load between shafts, bearings, couplings and other parts caused by the relative displacement between the rotating components.
|
Product Information |
|
|
Product Name |

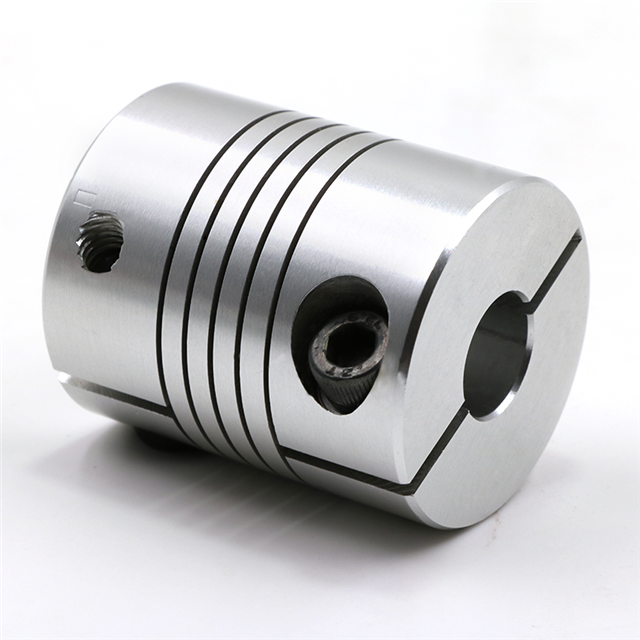

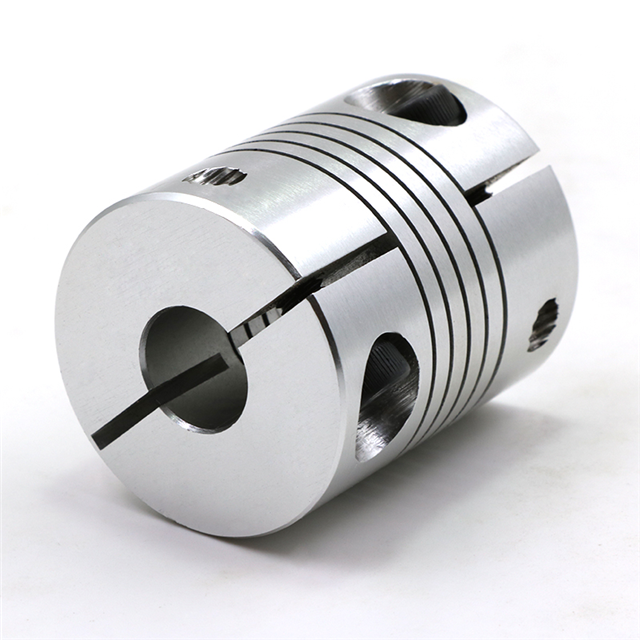

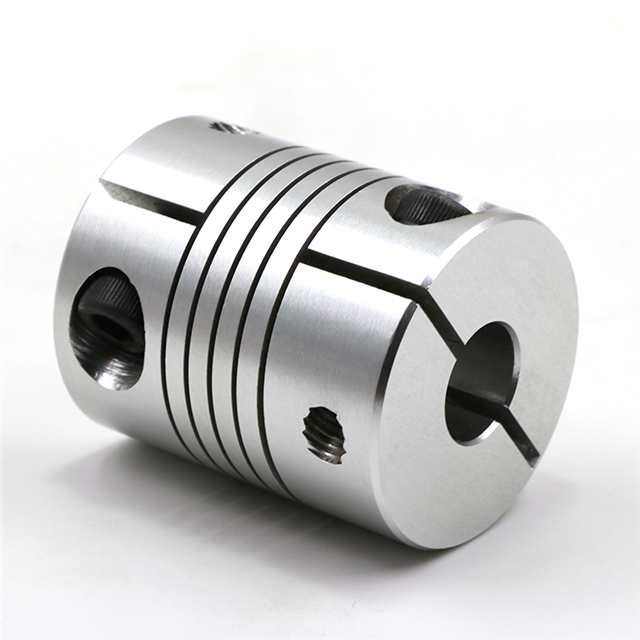

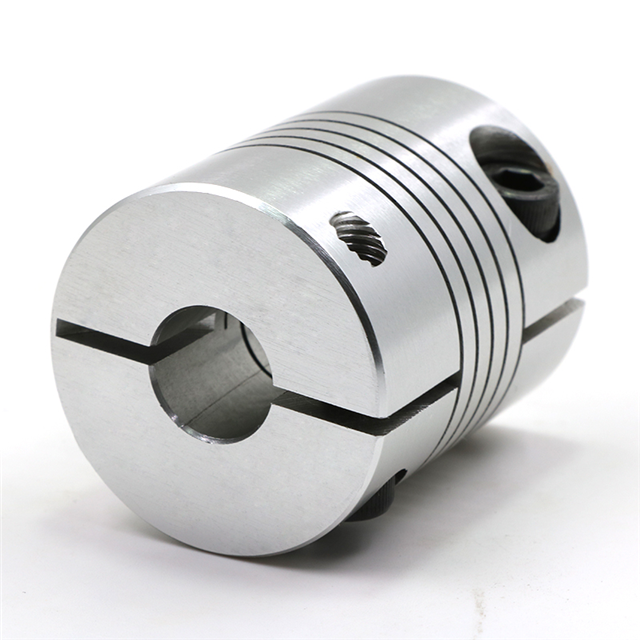

Flexible Shaft Coupling |
|
Material |
Aluminum Alloy |
|
Advantages |
1. Material: Aluminium, Aluminum alloy 70750 2. Zero Backlash and 0 repair rate 3. High torque rigidity 4. Large adjustment amount of allowable deviation 5. Absorption of vibration and good electrical insulation 6. Can be with keyway if you need 7. Can customize the length or as your drawing |
|
Model No. |

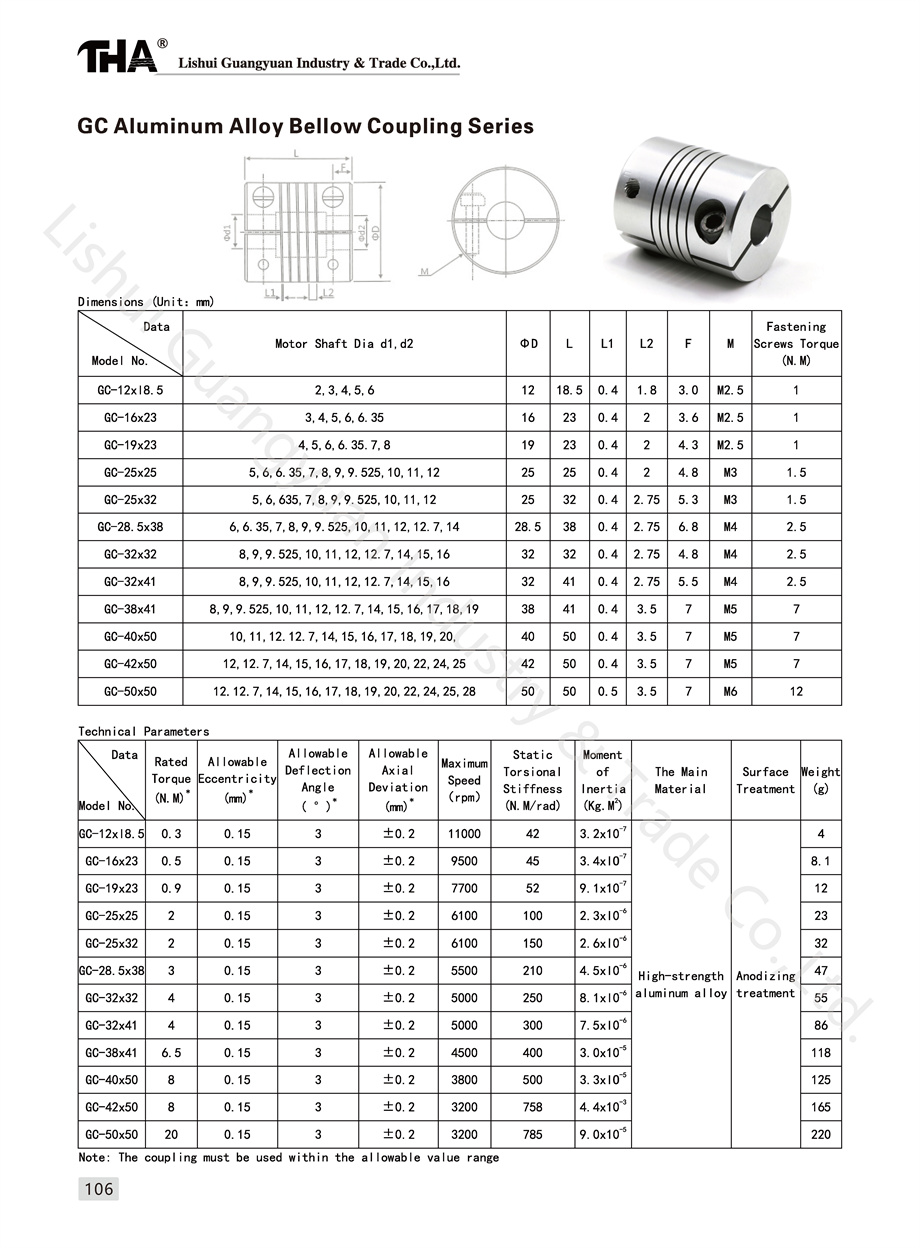

GC12x18.5, GC16x23, GC19x23, GC25x25, GC25x32, GC28.5x38, GC32x32, GC32x41, GC38x41, GC40x50, GC42x50, GC50x50 |
|
Product Package |
a. Plastic bag with box case or wooden case. We can provide shipping information to our customer at any time. |
|
Delivery time |
3~7 days for sample order, 15~20 days for bulk order. Depends on the actual shipping situation. |
