The flexible jaw coupling is simple in structure, does not require lubrication, is convenient for maintenance, easy for inspection, maintenance-free, and can run continuously for a long time. High-strength polyurethane elastic elements are wear-resistant and oil-resistant, have large carrying capacity, long service life, and are safe and reliable. Stable and reliable work, with good vibration damping, buffering and electrical insulation properties.
Product Description
The plum coupling has good balance performance and is suitable for high-speed applications (the maximum speed can reach 30,000 rpm), but it cannot handle large deviations, especially axial deviations. Larger eccentricity and deflection angle will produce a larger bearing load than other servo couplings. Another value of concern is the failure of the plum blossom coupling. Once the quincunx elastic spacer is damaged or fails, the torque transmission will not be interrupted, and the metal claws of the two shaft sleeves mesh together to continue to transmit the torque, which is likely to cause problems in the system. It is a big advantage of this coupling to choose the appropriate plum elastic spacer material according to the actual application.
|
Product Information |
|
|
Product Name |

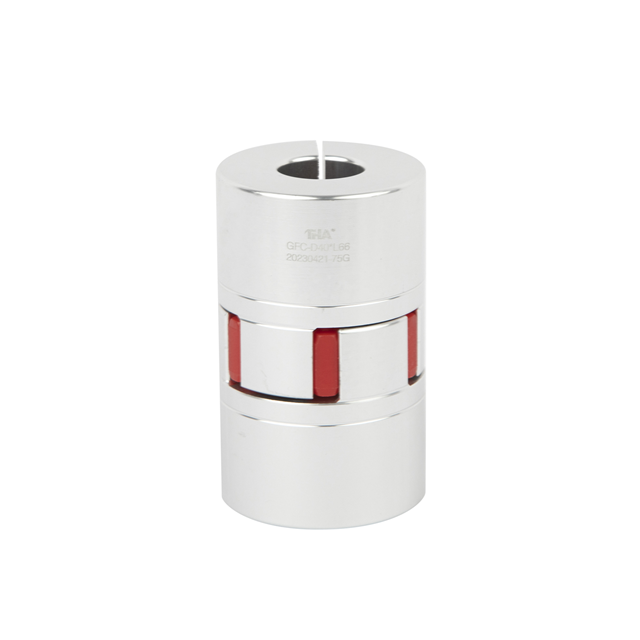

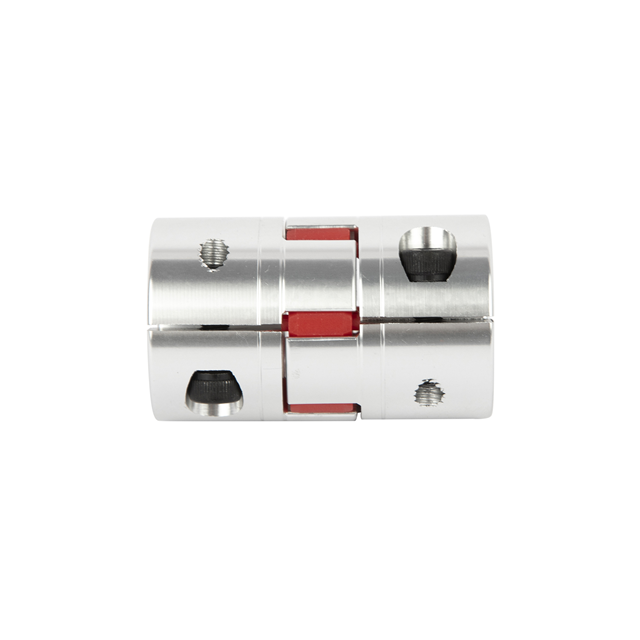

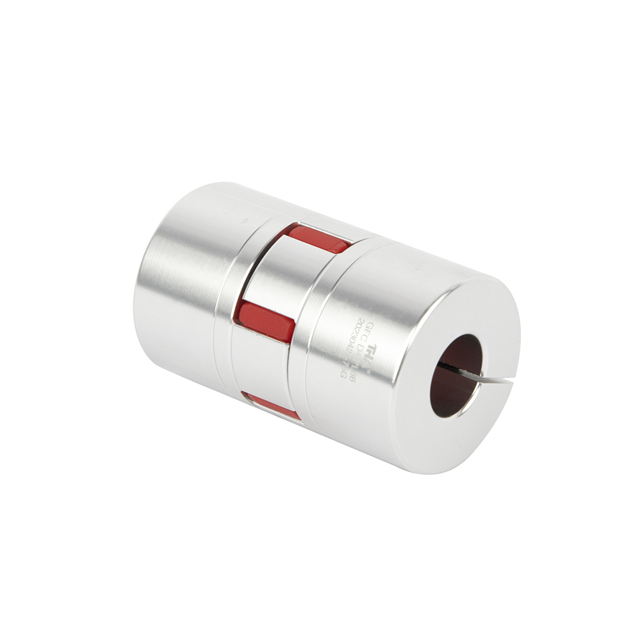

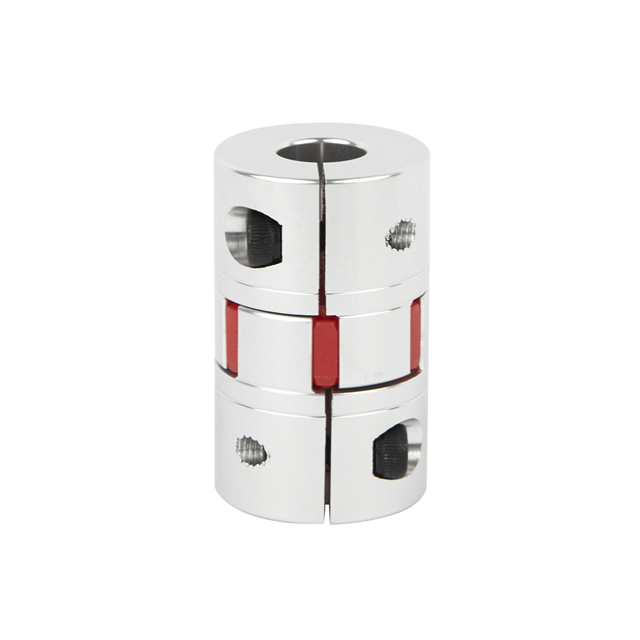

Flexible Jaw Coupling Connector |
|
Material |
Aluminum Alloy, Plastic |
|
Advantages |
1. Flexible jaw coupling is stable and reliable, with good vibration damping, buffering and electrical insulation properties.
3. It has large axial, radial and angular compensation capabilities. |
|
Model No. |

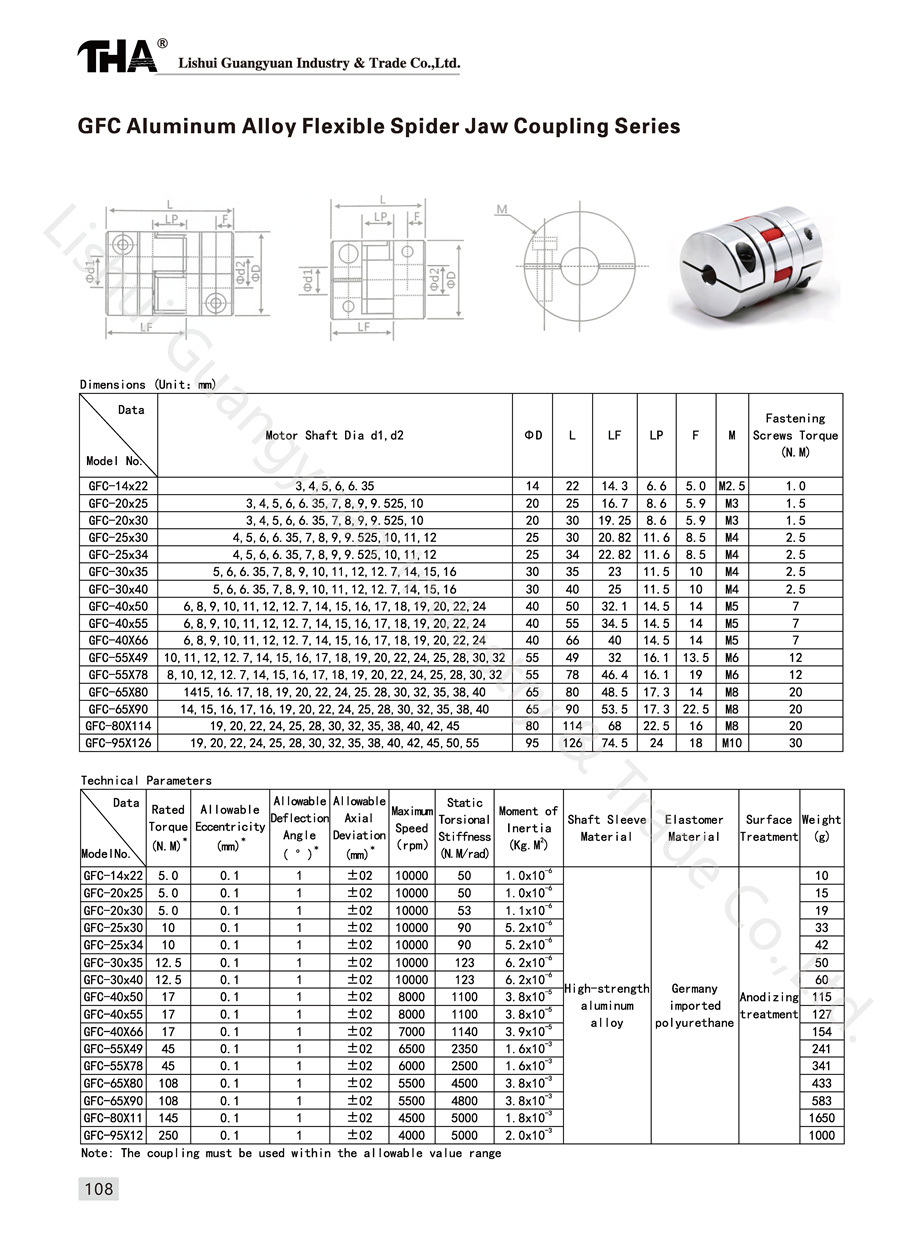

GFC14x22, GFC20x25, GFC20x30, GFC25x30, GFC25x34, GFC30x35, GFC30x40, GFC40x50, GFC40x55, GFC40x66, GFC55x49, GFC55x78, GFC65x80, GFC65x90, GFC80X114, GFC95x126 |
|
Product Package |
a. Plastic bag with box case or wooden case. We can provide shipping information to our customer at any time. |
|
Delivery time |
3~7 days for sample order, 15~20 days for bulk order. Depends on the actual shipping situation. |
